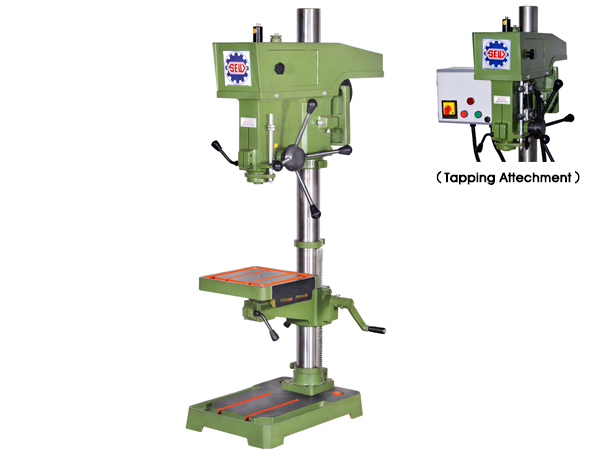

SEW / P-4

Description

Drilling Capacity In Steel
Column Diameter
Center Of Spindle To Column
Max. & Min. Distance From Spindle To Table
Maximum Distance From Spindle To Base
Taper In Spindle (Moser Taper)
Spindle Travel Maximum
Number Of Spindle Speed
Table Size
Base Size (Machine Area)
Overall Base Size
Overall Height With Guard
V-belt Section
Electrical Motor
Wooden Case Size ( LXWXH)

Capicity & Size

19mm
⌀ 74mm
200mm

500mm & 700mm

925mm

MT-2
125mm
87 TO 3200 RPM
260 X 260mm
260 X 235mm
480 X 300mm
1475mm
A-42
0.5 HP, 50 Cycle, 1440 RPM (LUBI BRAND)
700 X 400 X 1300mm
