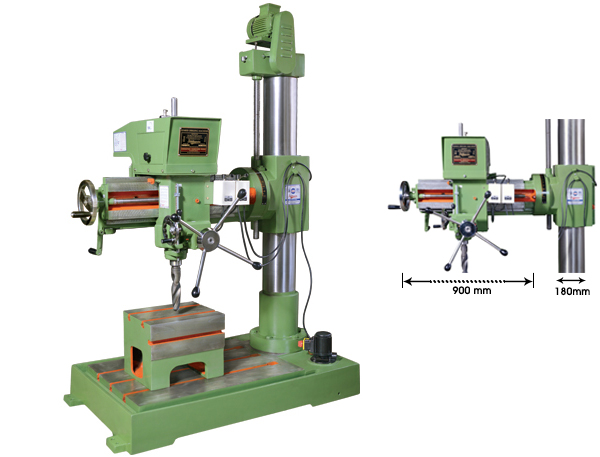

SEW / R - 1 (Hand time feed)

Description

Drilling Capacity in MS
Drilling Capacity in CI
Tapping Capacity in MS
Rough Boring in MS
Spindle Nose Tapper
Spindle Travel
Number of Spindle Speed
Range of Spindle Speed
Feed (R – I / R – II)
Number of Power Feed
Drilling Radius Max. / Min.
Max. / Min. Distance Column to Spindle
Maximum Drill Head Travel
Max. / Min. Base Plate To Spindle
Diameter of Column
Swivel of ARM L/R Side
Box Table Size
Base Plate Size
Working Surface
No. of T-Slot / Size
Overall Height

Capicity & Size

40mm
45mm
28mm
50mm
MT-4
250mm
8
62-1980 RPM
Hand / Auto
2 (0.1 & 0.2) Auto Feed
1095 / 440mm
920 / 360mm

560mm
935 / 190

180
90
380 x 300 x 300
760 x 1370 x 160
890 x 630
3 / 16mm
2000
